Mooer GE-300 LITE Amp Modelling Multi-Effects Processor

$1,399.00

SKU: MEP-GE300L  Find this item in your area

The Mooer GE300 LITE starts with 108 digital amp models based on MOOER’s non-linear amp modelling technology, 43 factory cab sims, full-featured IR loader, and a full complement of classic and modern effects, that can then be expanded on by taking advantage of MOOER’s GE Labs and MOOER Studio platforms. All of these features are controlled using a triple-mode eight footswitch setup with assignable LED colors and functions, thirteen effects blocks, and 255 preset banks to store all of or your favorite tone settings.

TONE CAPTURE is also included in the GE300Lite to allow digital recreations of guitars, amplifiers, and speaker cabinets. AMP MODE allows you to sample and capture your real-life amplifier, GUITAR MODE enables you to capture the EQ characteristics of your instrument, and CAB MODE provides an all-in-one tool to sample speaker cabinets and create your own IR files.

All of these elements are driven by two SHARC DSP chips with an intuitive UI and a whole host of professional control features and I/O options that gives players full control whether on stage or in the studio. Additional features include a programmable stereo effects loop, 30-second looper station with storable loop sessions, external device switching, direct USB audio and more!



Features:

  • High-quality AMP models that utilize MOOER’s non-linear digital amp modelling technology and IR-based speaker cab models to emulate the same dynamics and feel of a real tube amp.

  • TONE CAPTURE allows you to sample and capture your real-life amplifier, stompbox, Guitar, or cabinet to create brand-new digital sound models.

  • 108 preamp models captured from real-life amplifiers, 164 high-quality effects, and 43 IR-based factory speaker cab models. Support for up to 2048 sample pt. third-party impulse response files.

  • Programmable FX LOOP with optional signal chain routing for easy integration of your favorite effects and ultimate flexibility for 4 cable method and stereo amp setups.

  • Stereo outputs (1/4” and XLR) with independent signal chain routing. Flexibility to send different parts of your virtual rig to different devices.

  • MIDI IN/MIDI OUT/THRU with easy mapping and external ctrl switching to control your other pedals and amps.

  • Programmable footswitches with user selectable LED colors and assignable functions allowing complete user customization of the control scheme.

  • Intuitive and simple UI makes for fast and easy creation of tone presets.

  • Supports up to two external expression pedals.

  • 30-second stereo loop station

  • High-precision, adjustable TUNER.

  • Connect to your Mac or Windows PC to create and edit presets, upload IRs, update the firmware, and control MIDI functions.

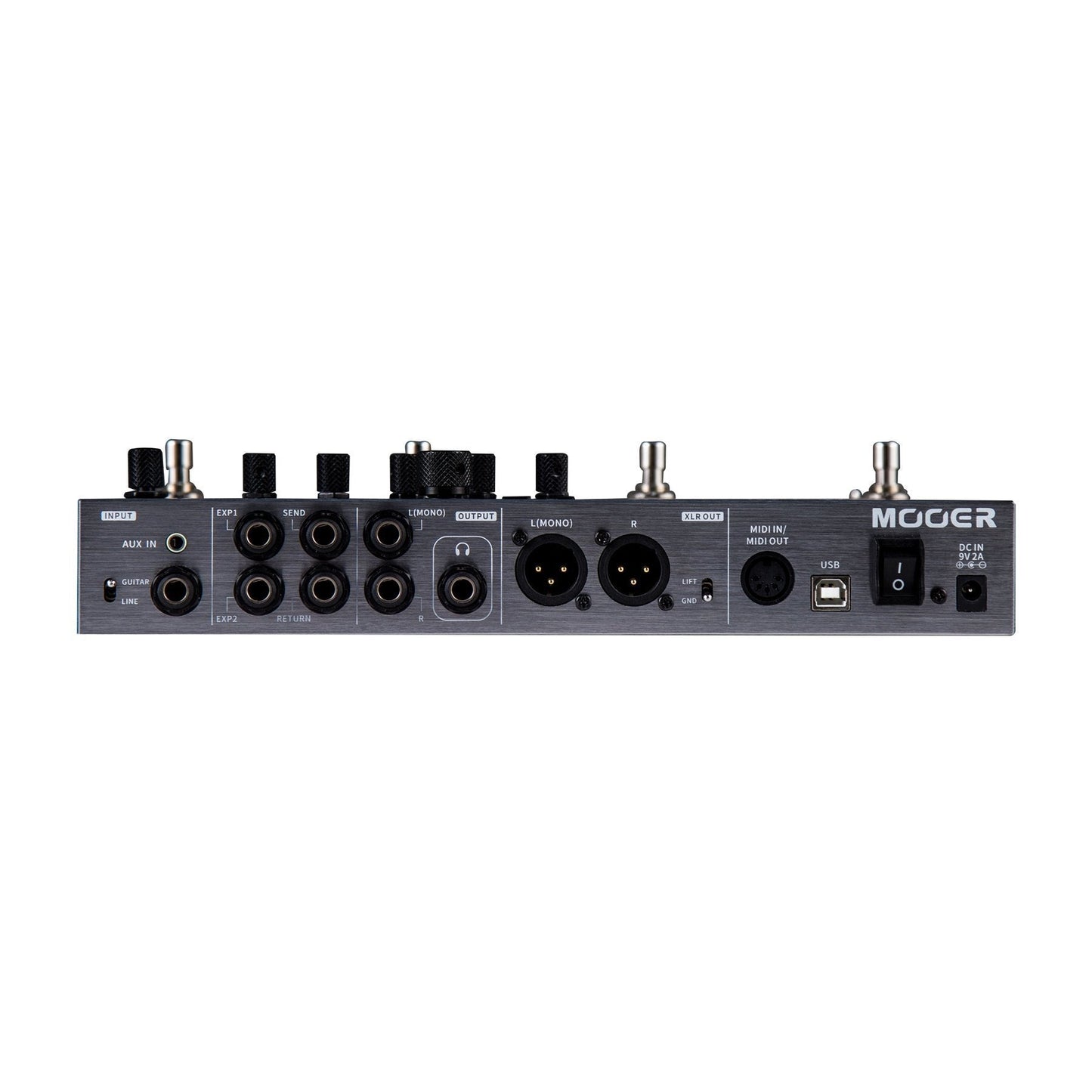

Connections:

Guitar/Line switch Switch input level between guitar and line level.

AUX IN 1/8” stereo jack to connect external media devices for audio playback.

1/4‘’ INPUT Instrument input

EXP1/EXP2 ¼” stereo jack/external expression pedal input. Can be set as AMP CTRL for channel switch control of amplifier.

SEND/RETURN Mono effects loop

OUTPUT 2 x ¼” mono jack

PHONES Dedicated headphone output¼” stereo jack

XLR OUT 2 x Balanced XLR output with Ground/Lift switch.

MIDI port For MIDI IN/OUT (can be set up to MIDI IN/OUT manually)

USB USB Type-B port to connect to record direct digital audio.

Interface with official MOOER software to edit and import/export presets and update firmware.

I/O Power ON/OFF switch.

DC IN Connect GE300 Lite power supply.



SPECIFICATIONS









Algorithm



NO. of Effect Blocks

13

NO. of Effect Types

315

Patches

255 (Preset)



Format

.wav

Sampling Rate

44.1kHzFull Sampling rate supported

Sampling Accuracy

24 Bits

Sampling Points

2048 Points

















Input

Input

Type

1/4” unbalanced mono audio jack

Impedance

Guitar: 1Meg ohm

Line: 10k ohm

Maximum Input

Level

Line: 10k ohm

6.5dBu

Return

Type

1/4” unbalanced mono audio jack

Impedance

1Meg ohm

Maximum Input Level

Line: 10k ohm

6.5 dBu

Aux In

Type

1/8” unbalanced Stereo audio jack

Impedance

10k ohm

Maximum Input Level

12.4 dBu

A/D Conversion

Sampling  Rate

44.1 kHz

Sampling Accuracy

24bit

Dynamic

114 dB

Frequency

20Hz – 20kHz, +0 / -1 dB

















Output

Output

Type

1/4” unbalanced mono audio jack

Impedance

100 ohm

Maximum Output Level

14.6 dBu

XLR Output

Type

XLR balanced output

Impedance

300 ohm

Maximum Output Level

14.6 dBu

Send

Type

1/4” unbalanced mono audio jack

Impedance

100 ohm

Maximum Output Level

6.4 dBu



















Others

MIDI

MIDI IN / OUT (THRU)

5 Pin Female Connector

USB

Type

USB Type B

USB Audio

USB 2.0, 2 IN 2 OUT, 44.1kHz, 24bit

EXP2 External Expression Jack

Type

1/4” TRS jack x2

Impedance

10k – 100k ohm

Power Supply

DC 9V, 2A,

Dimensions

287mmX208mmX64mm

Weight

2.1 kg

Accessories

Power Supply, USB Cable, Quick Guide manual.
